Evolution MD255SEG-CS | 10 in. | Segmented Edge | 7/8 in. Arbor | Multi-Purpose, Metal Cutting Diamond Blade

Multi-material cutting diamond edge blade offers versatile cutting and superior blade life.

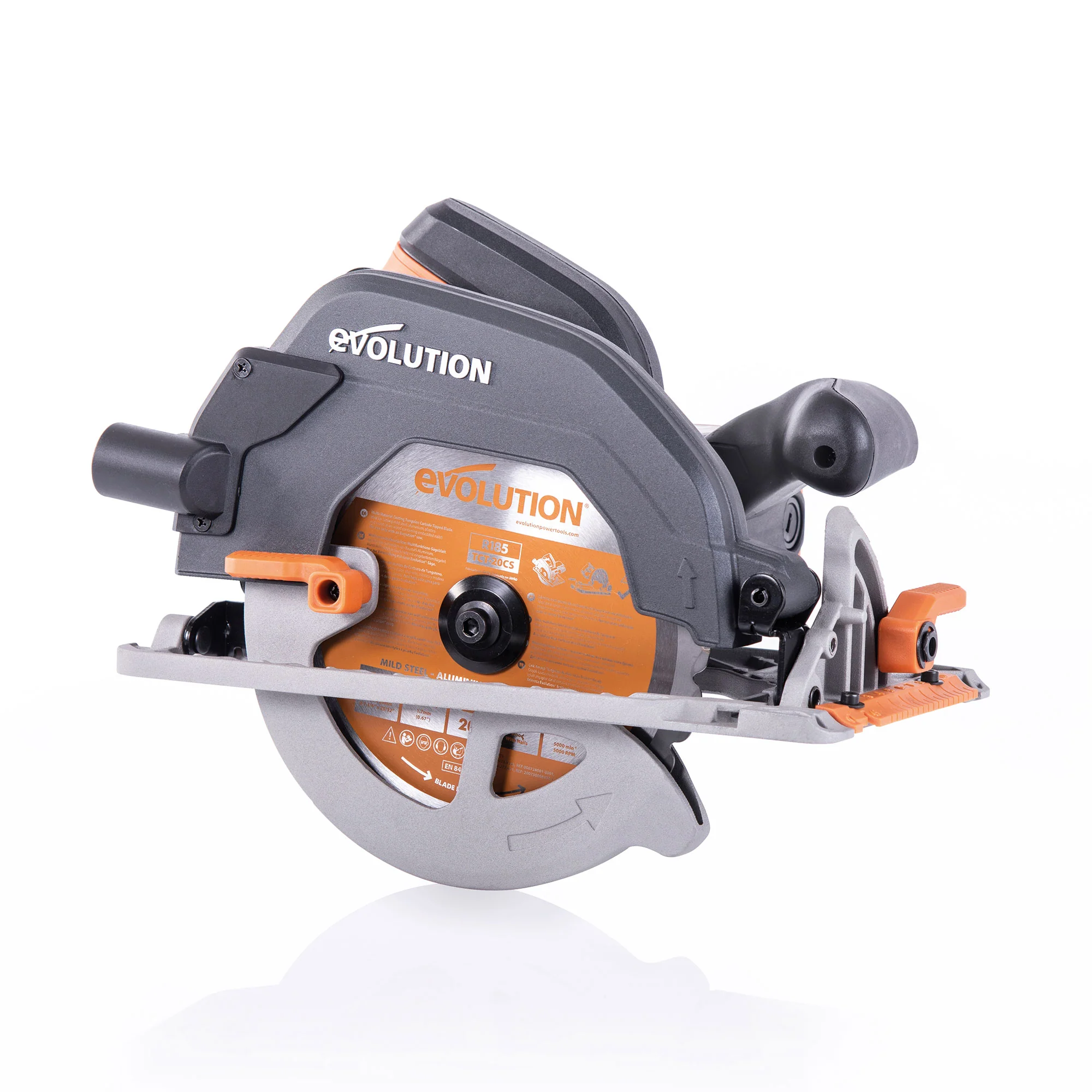

• Compatible with the R255DCT Concrete Cutting Saw

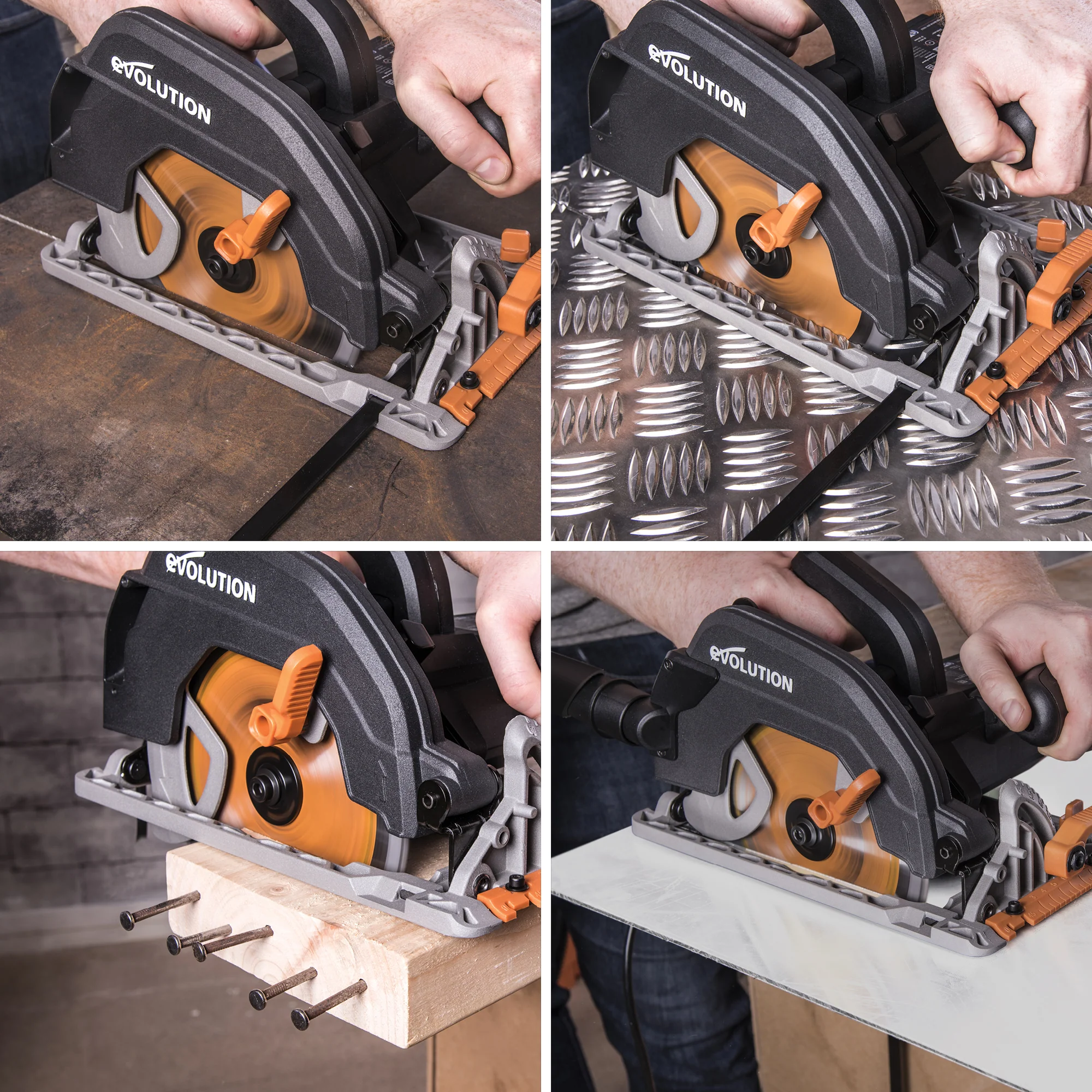

• Multi-material Cutting: One saw & One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics & more saving you time and money.
• 30x Longer Life: Up to 30x longer blade life than abrasive discs when cutting metal. Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel.
• Constant Diameter:Steel blade body with diamond cutting edge maintains its full diameter so you have maximum cutting capacity for the lifetime of the blade.
• Cleaner & Safer: The steel body won’t shatter, unlike abrasives, which can cause serious injury. Less dust, less sparks & less odour vs abrasive discs, make this a safer cutting solution.

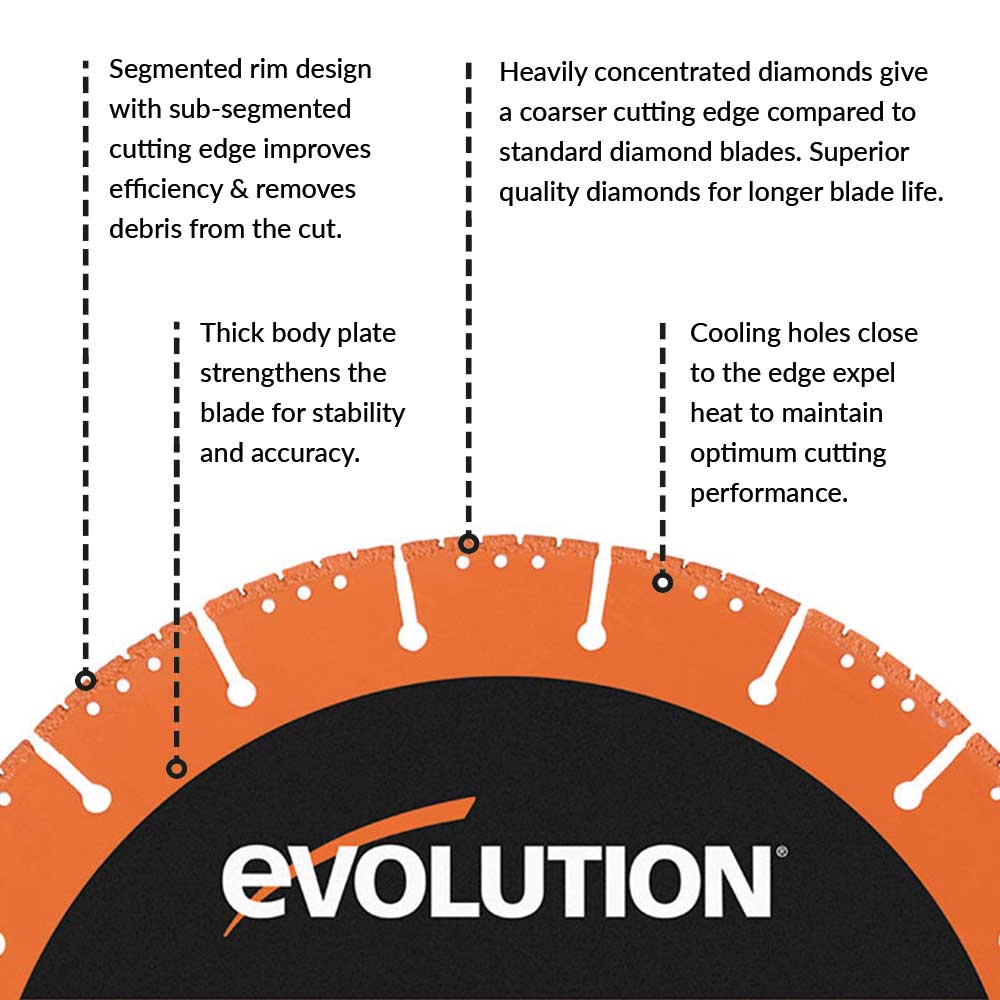

• Cooling holes close to the edge expel heat to maintain optimum cutting performance.
• Heavily concentrated diamonds give a coarser cutting edge compared to standard diamond blades.
• Superior quality diamonds for longer blade life.
• Segmented rim design with sub-segmented cutting edge improves efficiency & removes debris from the cut.
• Thick body plate strengthens the blade for stability and accuracy.

Specifications

Dia. Ø:	10 in.
Max. Speed:	6150 RPM
Bore / Arbor Ø:	7/8 in.
Rim:	Segmented
Base Thickness:	0.071 in.
Segment / Tooth Thickness:	0.122 in.
Segment / Tooth Height:	0.118 in.
Segment / Tooth Quantity:	16
Sub-Segment / Tooth Quantity:	80
