Evolution EVOMAG42: 1-5/8 in. Magnetic Drill With Carry Case

The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion. Ideal for site use - with so many buildings being built around a steel framework, a magnetic drill is an essential product and ideal for site use.

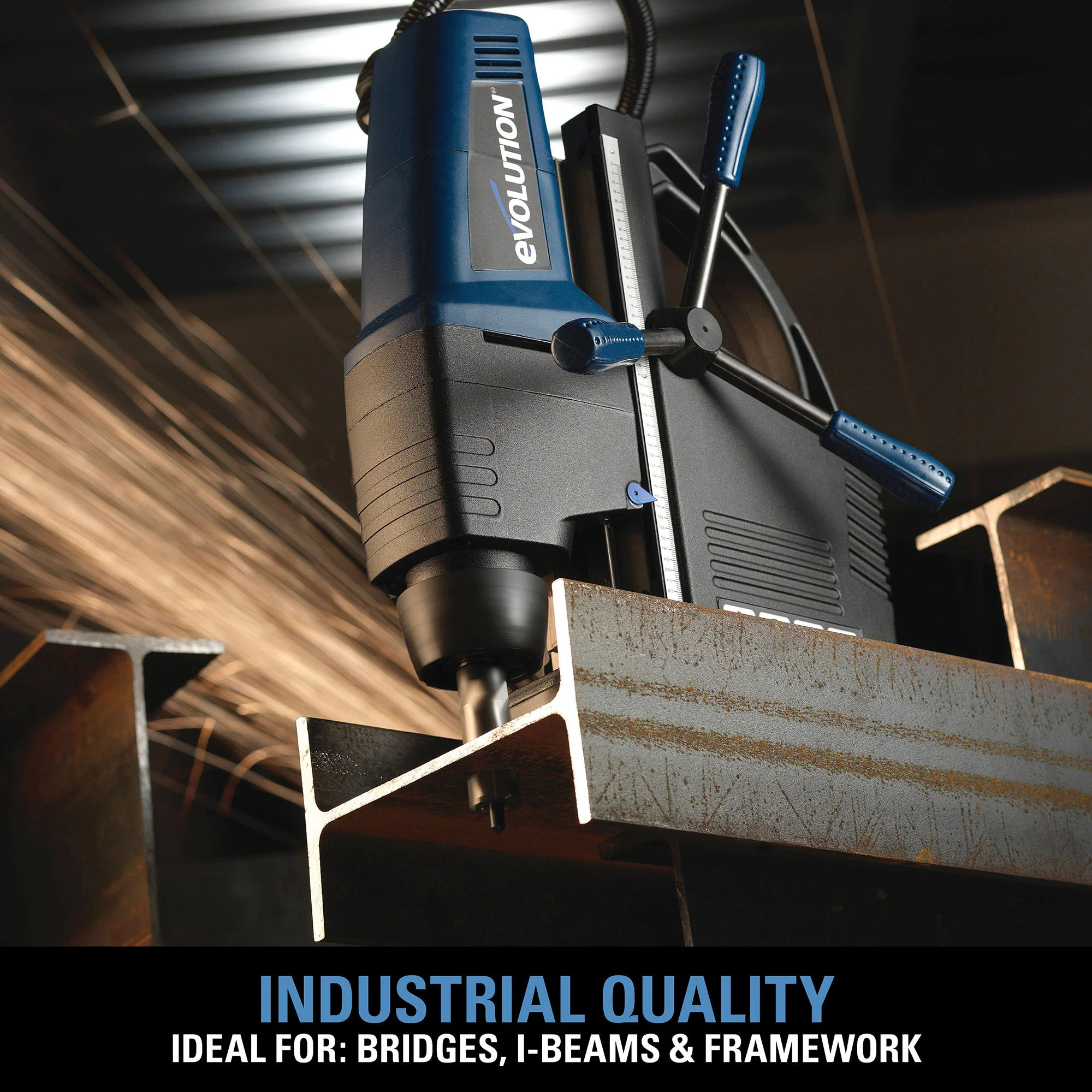

• Industrial Quality - This incredible Magnetic Drill is deceptive in its capabilities; although small in size it is well-suited for heavy-duty industrial and fabrication work. The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion.

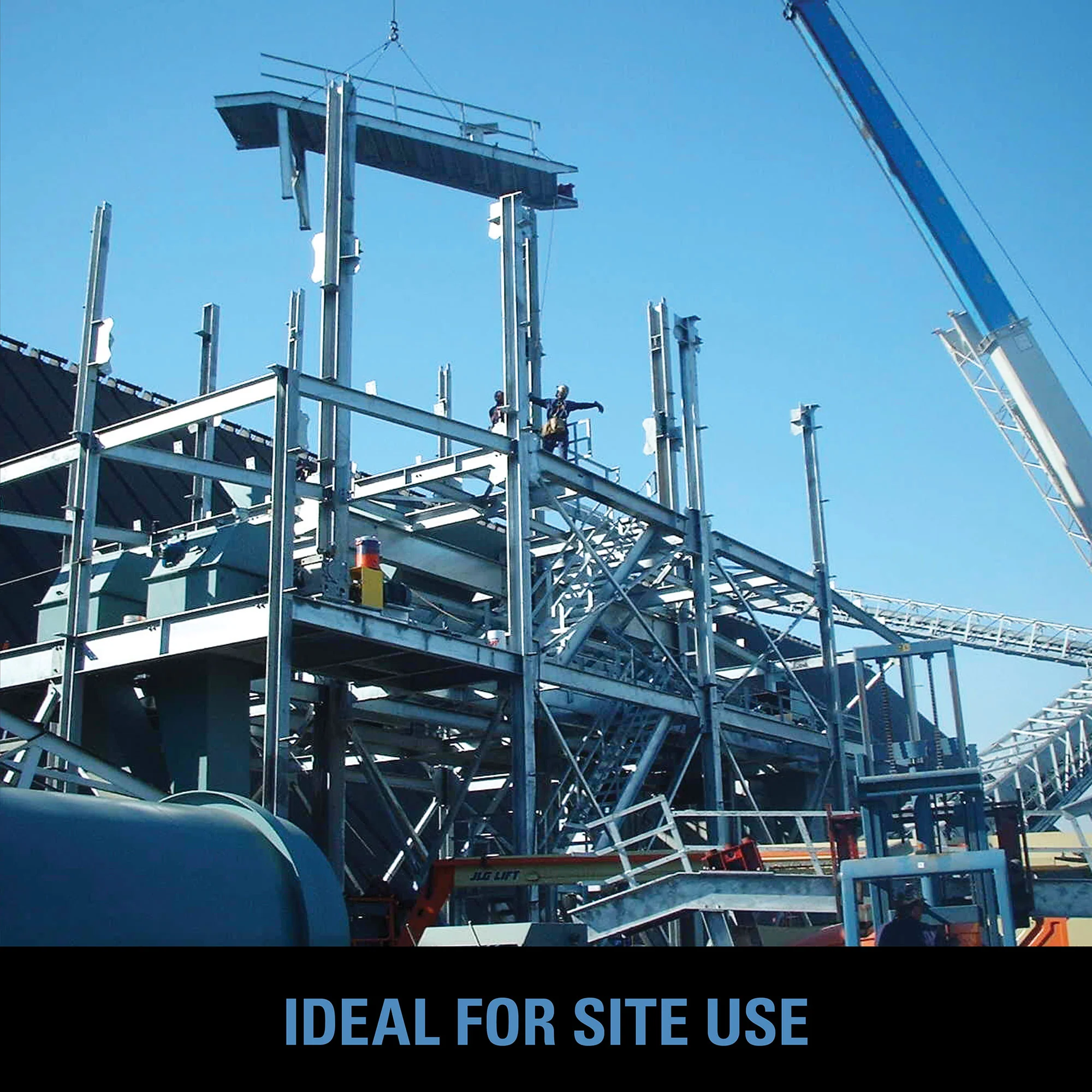

• Ideal for site use - With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use. It is also easy to carry (with the supplied case) and its lightweight makes it manageable to position in both awkward and confined spaces.

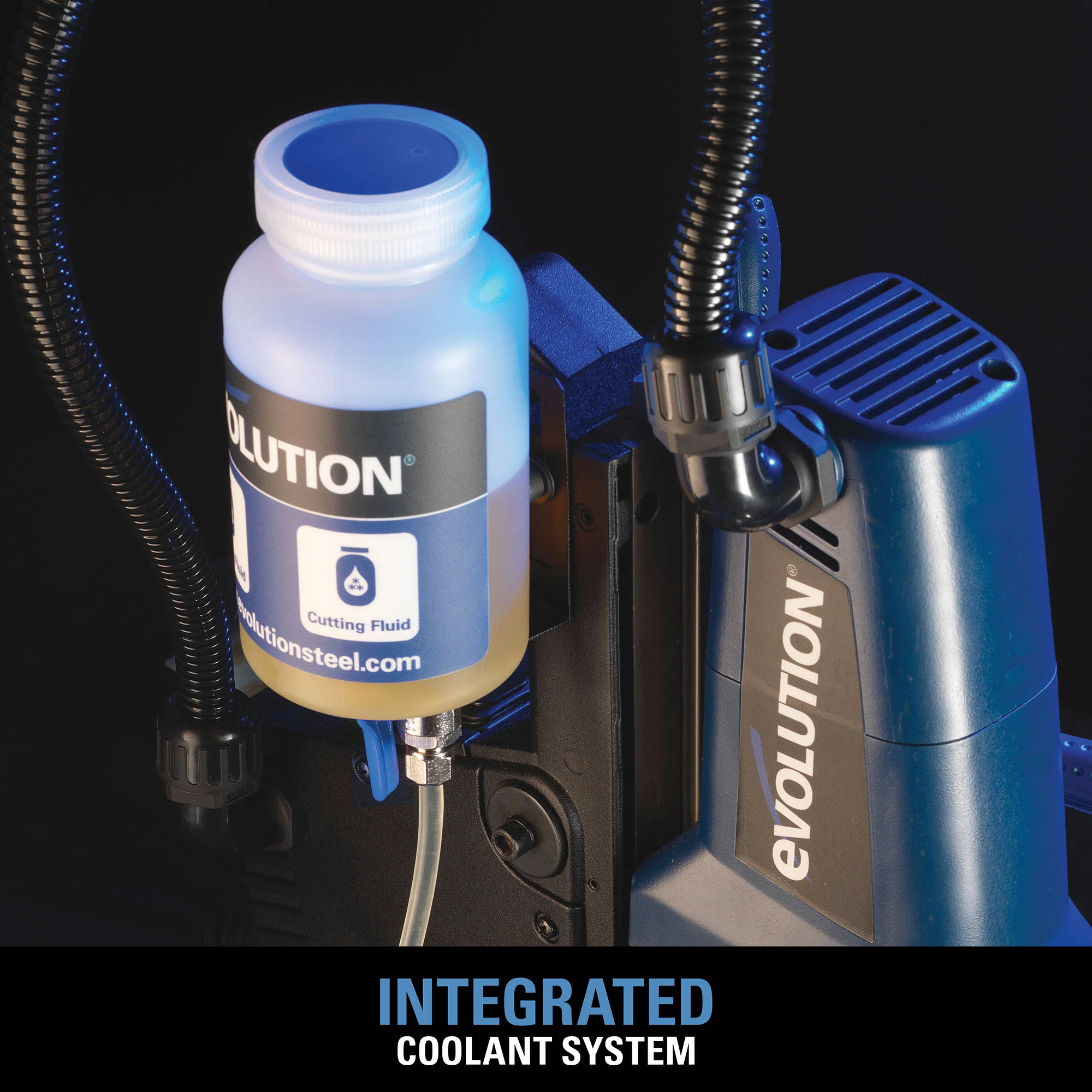

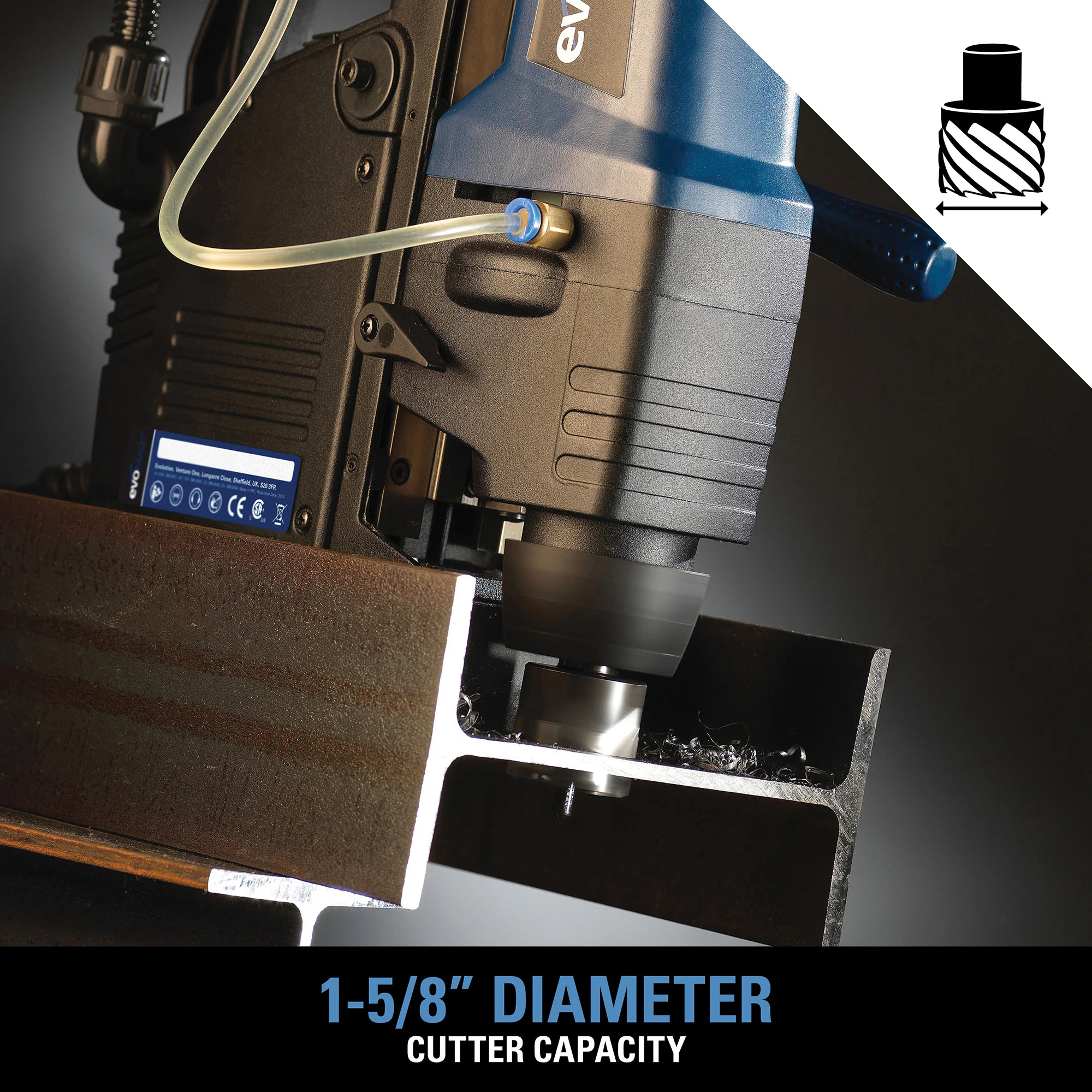

• The impressive EVOMAG42 offers an incredible value with the capability to use up to 1-5/8 inch (42mm) cutters and 1/2 inch (13mm) twist drills. The EVOMAG42 also features an integrated coolant system for magnetic drilling.
• Evolution also offers a large variety of tools to be used with the EVOMAG42. This offering includes a wide range of annular cutters, step drills, and mini-cutters. Extend the life of your cutters and get more value by using Evolution Cutting Fluid.
• Ideal For: Bridges, I-Beams and Framework
• Includes Carry Case



Cutting Capacities

Maximum Annular Cutting Capacity	1-5/8 In. / 42 mm

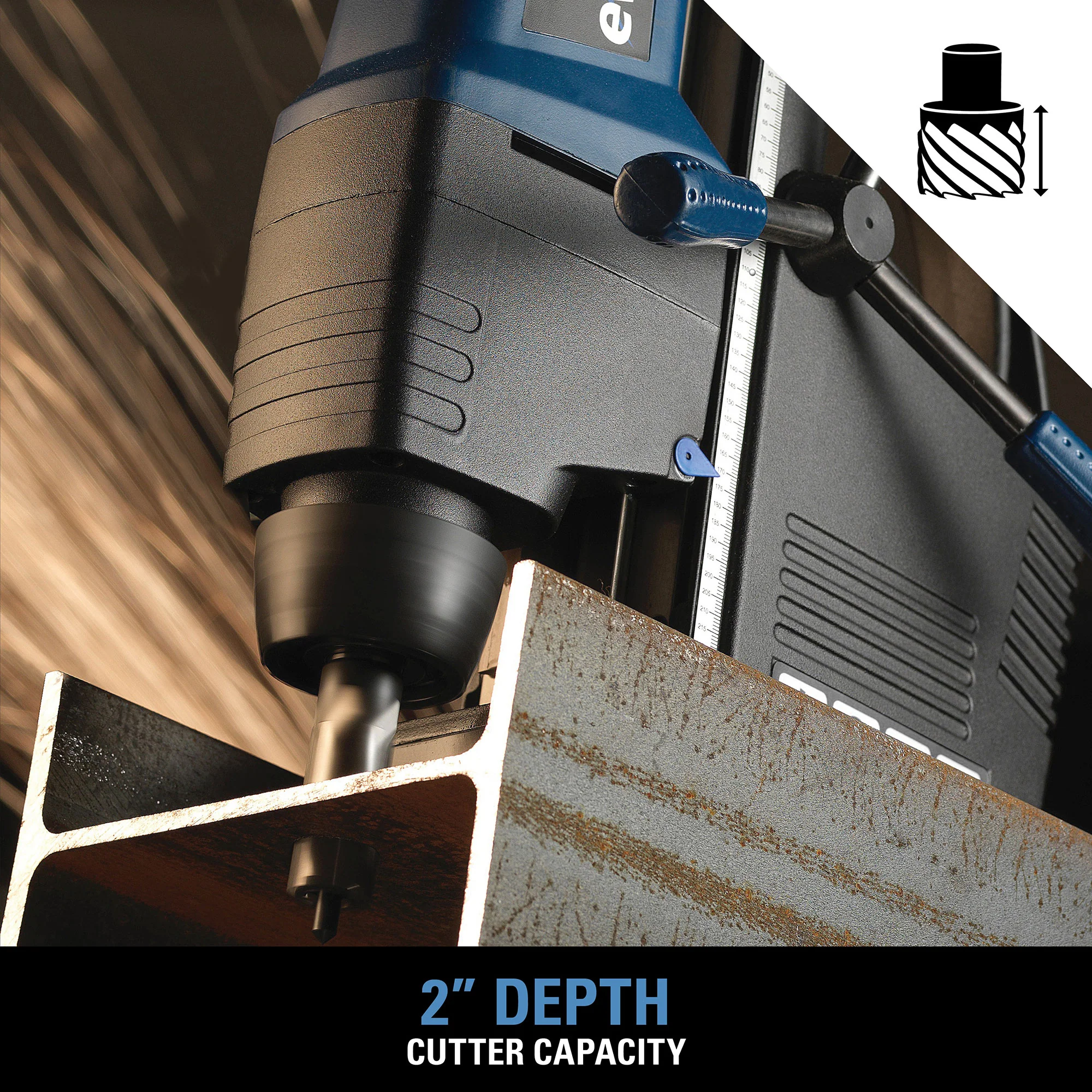

Maximum Cutting Depth	2 inch
Cutter Shank	3/4 inch

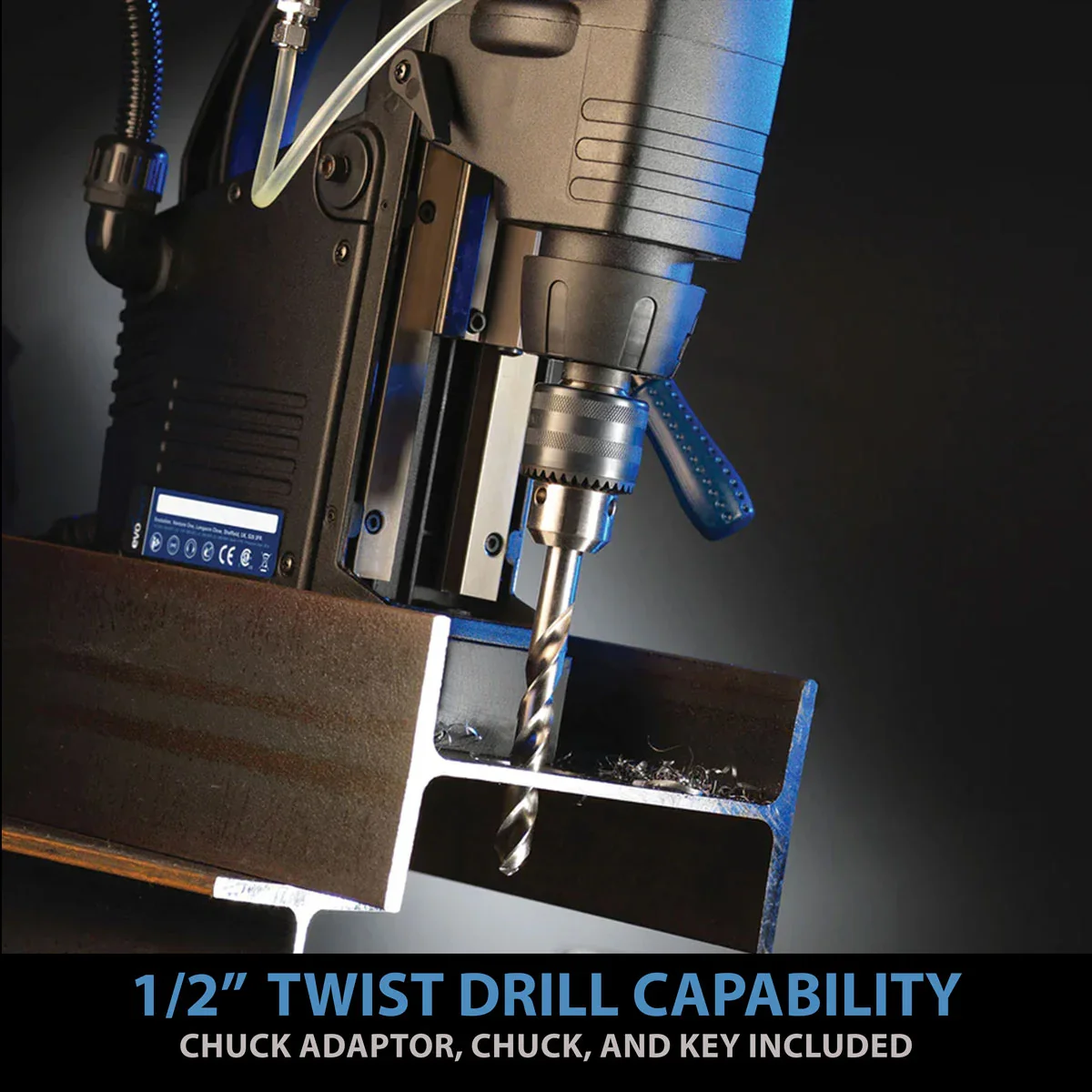

Standard Twist Drill Capacity	1/2 inch
Magnetic Adhesion	2860lbs f
Minimum Plate Thickness	3/8 inch



Specifications

Machine Spec

Motor (120V 60Hz):	10A
Speed No Load:	450 rpm
Number of Speeds	1
Insulation Class	1
Cable Length:	8ft 2inch
Product Weight:	26 lb



Dimensions

Magnet Dimension	1-5/8 x 3-1/2 x 7-1/8 inch
Maximum Machine Height	25-3/4 inch
Minimum Machine Height	16-1/2 inch
Machine Width	8-3/4 inch



Noise Data

Sound Pressure Level LPA:	89.40dB(A) K:3dB(A)
Sound Power Level LWA:	102.4dB(A) K=3 dB(A)



Vibration Data

Hand Arm Vibration

0.629m/s2 K= 1.5m/s2



Items Included

Instruction Manual

Coolant Tank System

Handles x3

Safety Strap

Safety Guard

Safety Guard Fixing Screws x2

Hex Key 2mm

Hex Key 3mm

Hex Key 4mm

Hex Key 5mm

Chuck with Chuck Key

Carry Case



Accessories

Image	Description	Compatible With	Part Number
	1/2" Chuck & Key	EVOMAG28 and EVOMAG42	HTA153
	Chuck Adaptor* *Required to fit the HTA153 1/2" chuck.	EVOMAG42	HTA47
