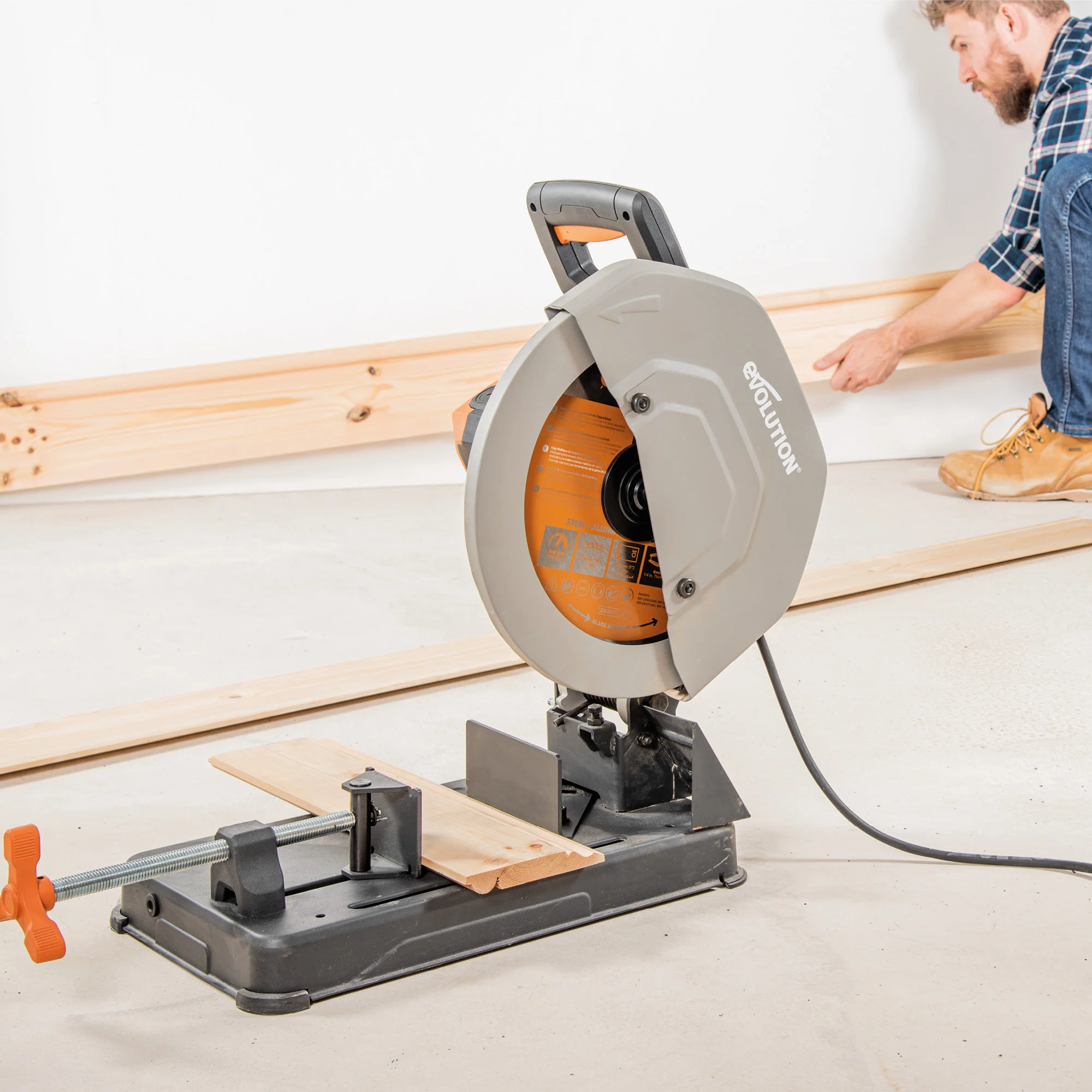

Evolutions R355CPS is a 15A 14 in. Corded Multi-Material Cutting Chop Saw that was designed for accuracy, reliability and power. The product is backed by a 3-year warranty to ensure peace of mind for the user. The powerful 15 Amp motor has been tested to 160 hours without any failure. A Japanese 32 tooth TCT blade is included with the ability to cut steel and various metals with no heat generated and virtually no sparks.
-

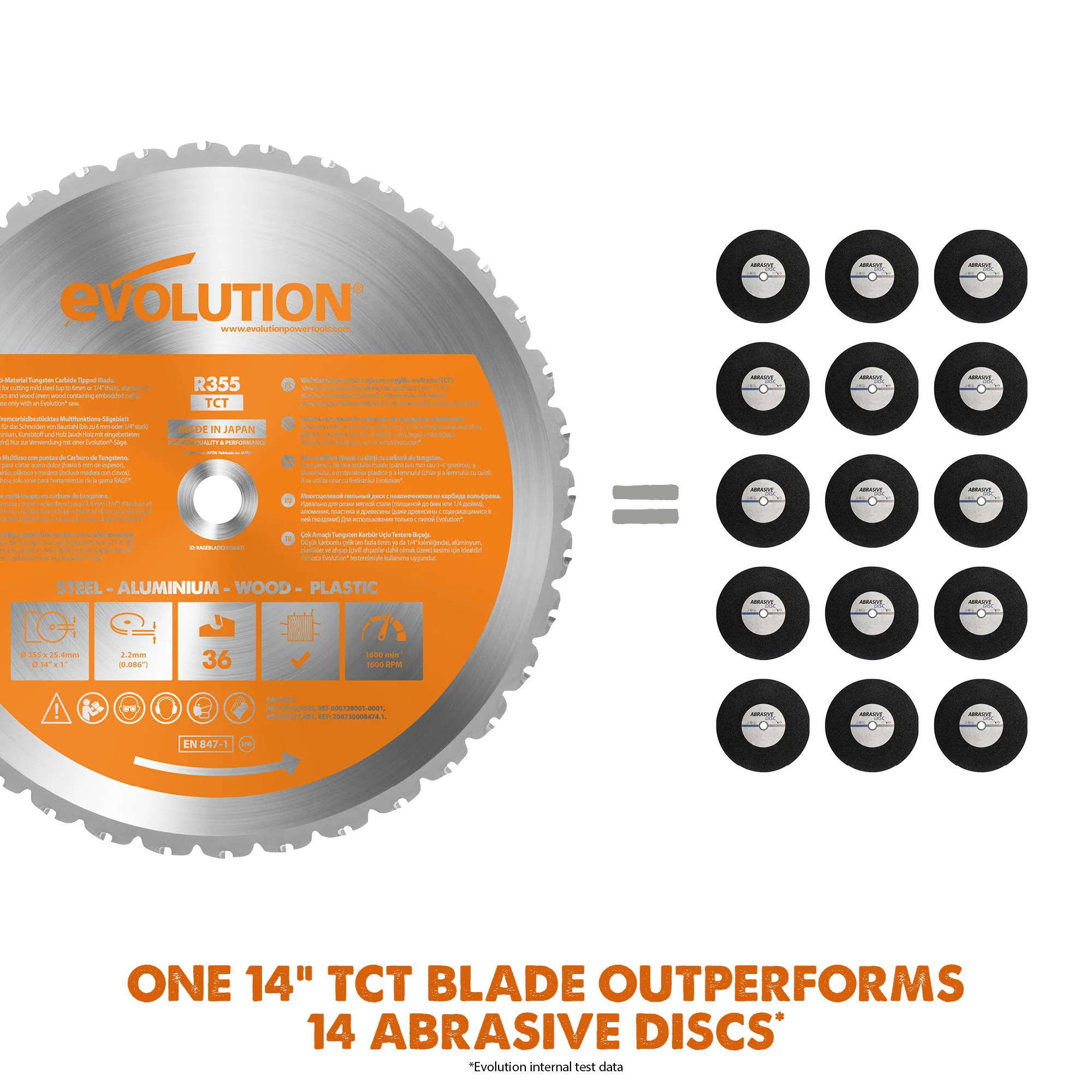

Outperforms Abrasive Saws 14:1: Not only is it faster, safer and more accurate, the R355CPS chop saw is more economical. Save time and save money with every smooth, square cut you make.
-
Huge Cut Capacities: Cut up to 4-3/4 inch square tube, 3-3/4 inch x 7-1/8 inch rectangle tube and Ø5-1/8 inch round tubes.
-

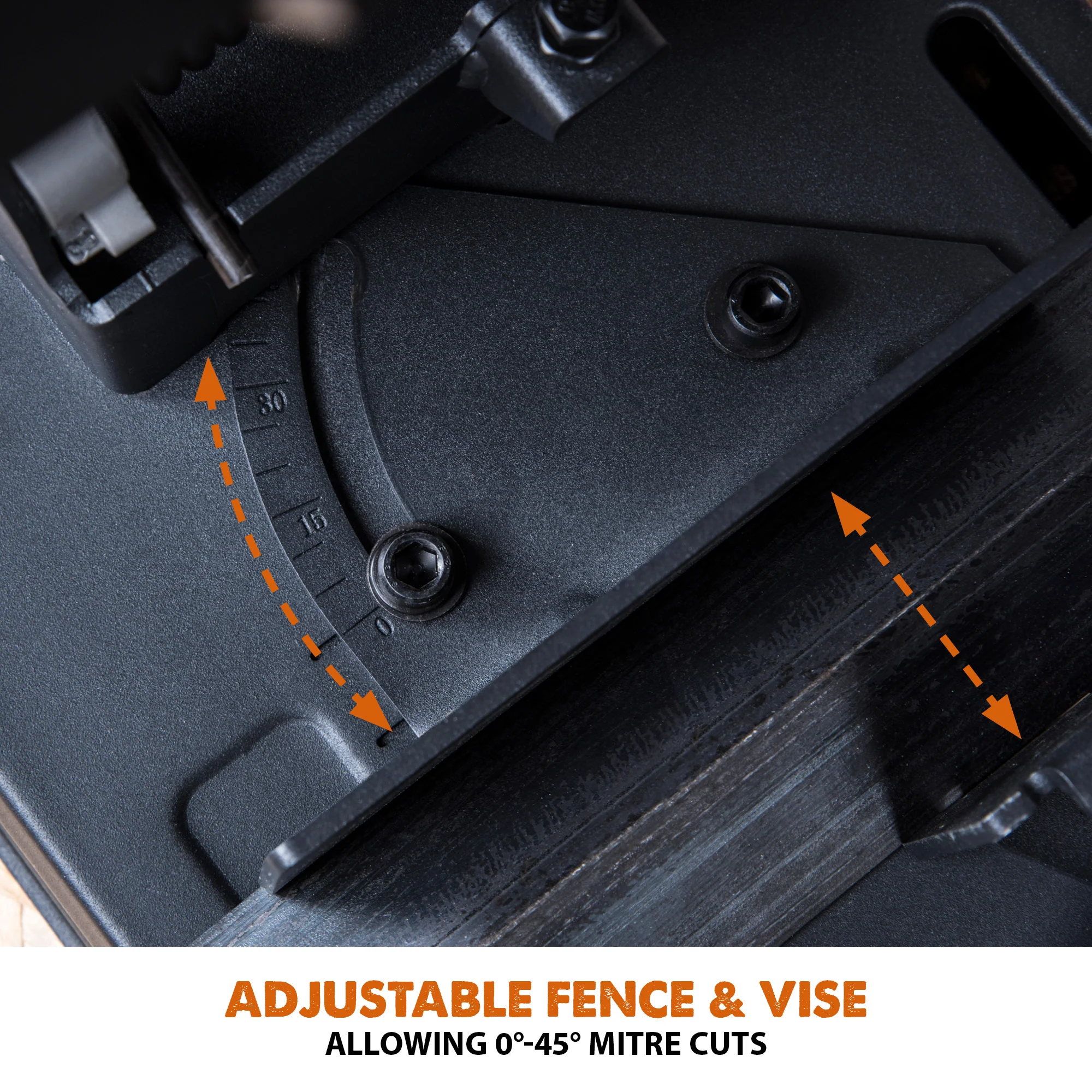

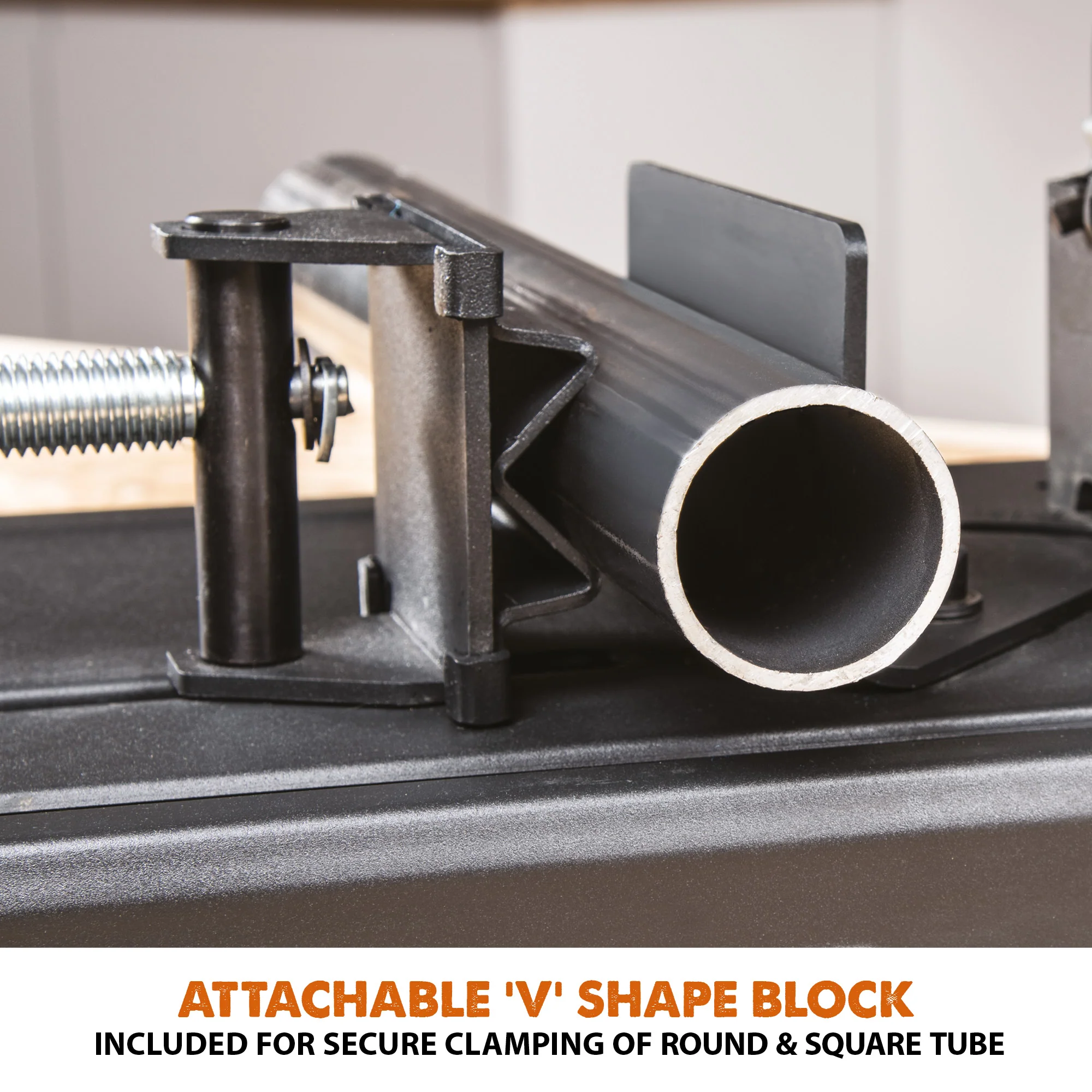

Clamp, Chop, Repeat: Adjustable 3-position, rear fence, and a fast action vise clamp with a 'V' block to support round tube, allows miter cuts to be made from 0° - 45° in seconds.
-
Accurate, Reliable & Powerful: 15A Hi-torque gearbox & blade system, increases motor life & blade-life. Heavy duty, pressed-steel base and rubber feet reduces vibration and increases cutting performance.
-

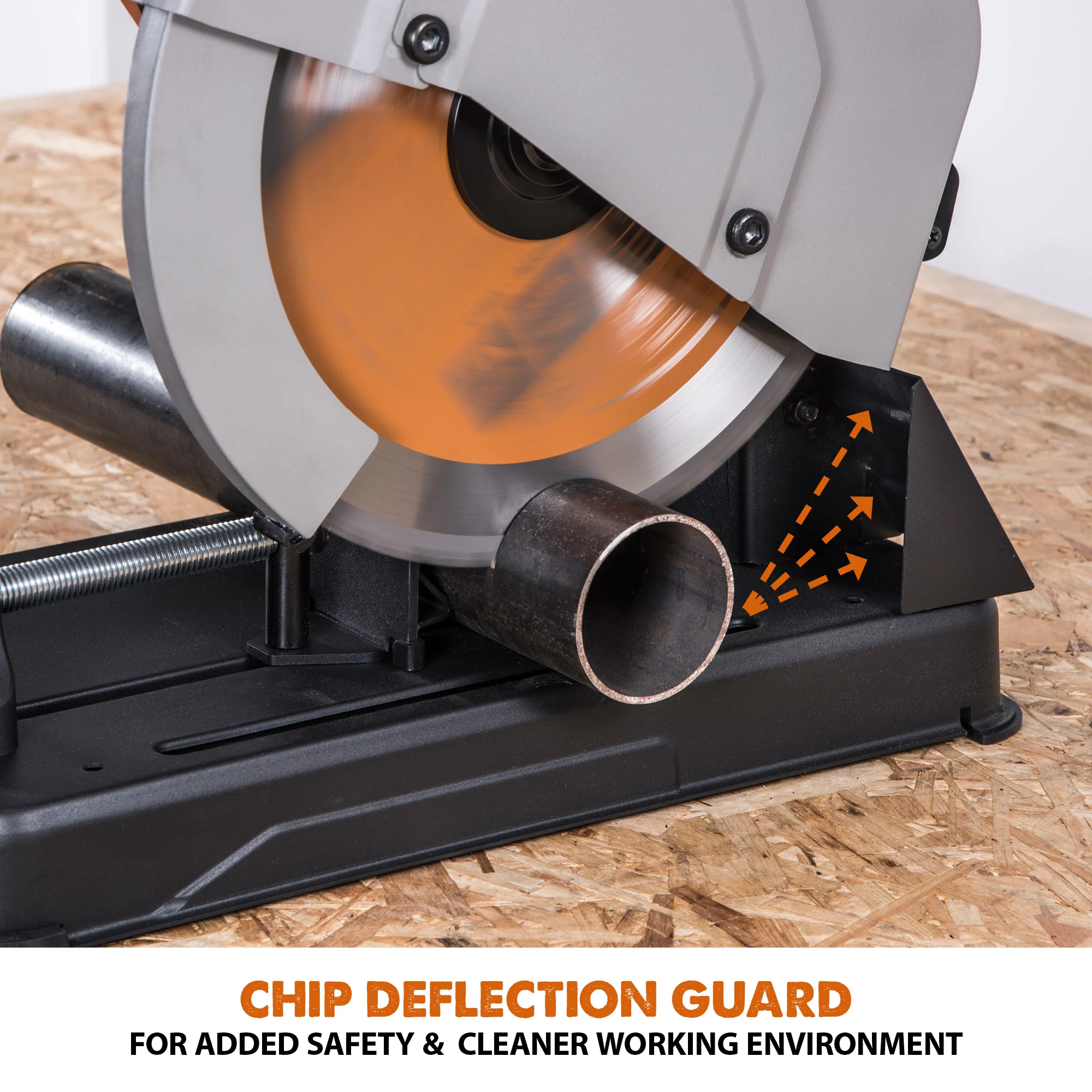

Cold Cut Technology: Unlike abrasives, the cut produces virtually no sparks, no dust, and no fumes, for a safer, cleaner working environment, and an accurate, square cut.
-

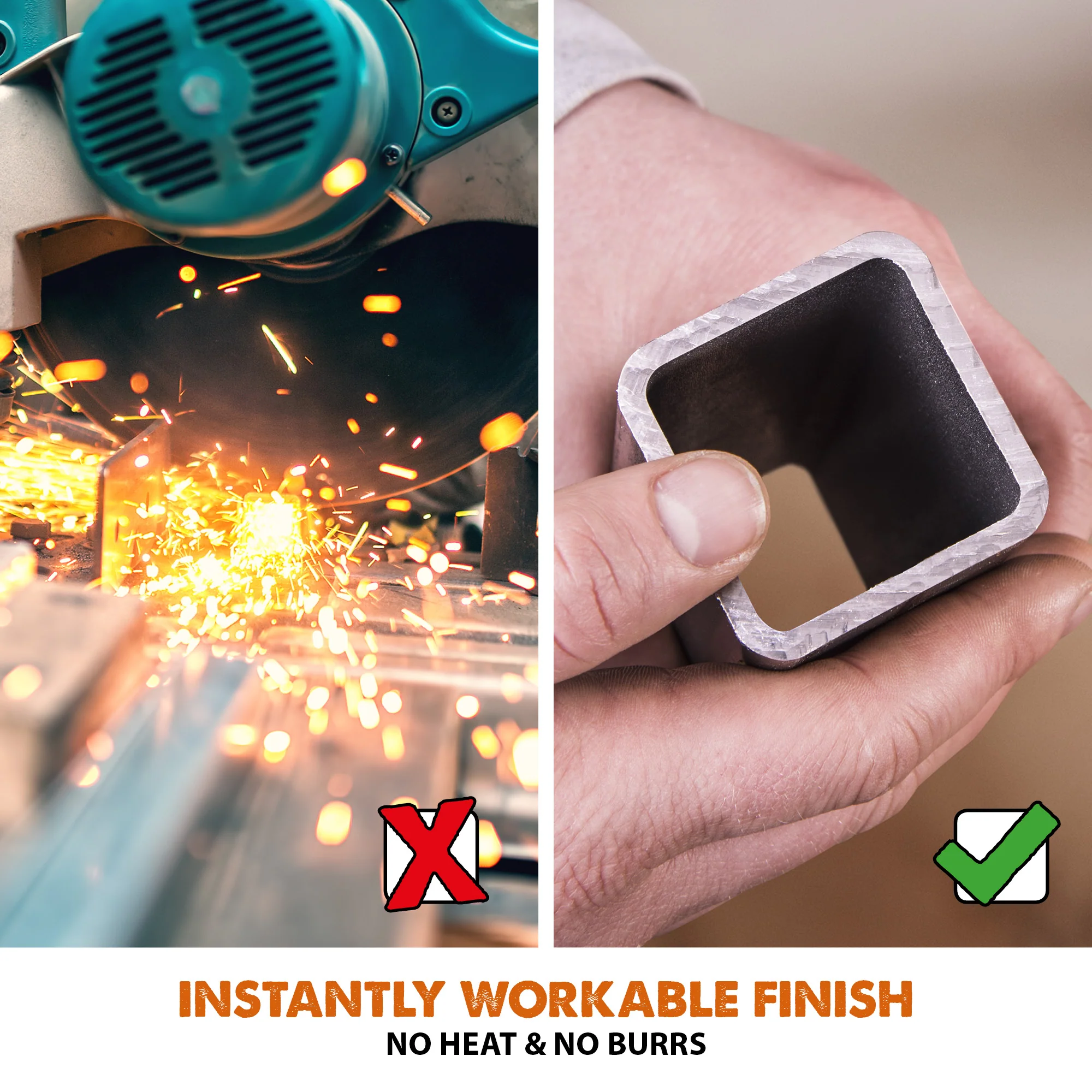

No Heat & No Burrs: Instant workable finish. Now you don't need to wait for the metal to cool after cutting. No coolant, no filing, means faster production; saving you time and money.

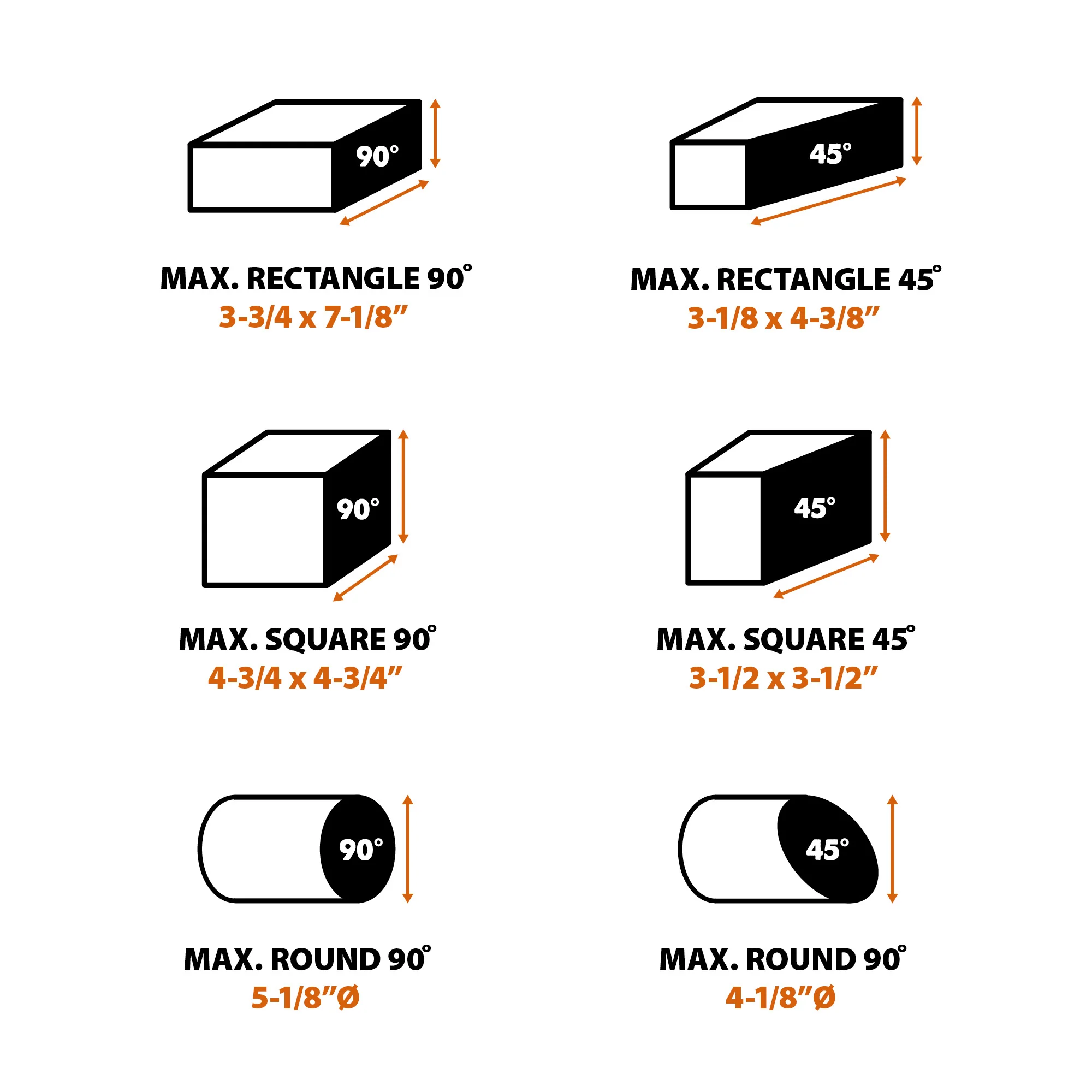

Cutting Capacities
| Max. Rectangle Tube (0° x 0°) |
3-3/4" x 7-1/8” |
| Max. Rectangle Tube (0° x 45°) |
3-1/8" x 4-3/8” |
| Max. Square Tube Cut (0° x 0°) |
4-3/4" x 4-3/4" |
| Max. Square Tube Cut (0° x 45°) |
3-1/2" x 3-1/2" |
| Max. Round Tube Cut (0° x 0°) |
5-1/8" Ø |
| Max. Round Tube Cut (0° x 45°) |
4-1/8" Ø |
| Mild Steel Plate - Max. Thickness |
1/4" |
| Mild Steel Box Section - Max. Wall Thickness |
1/8" |
| Minimum Cut Off Piece Length |
5/16" |

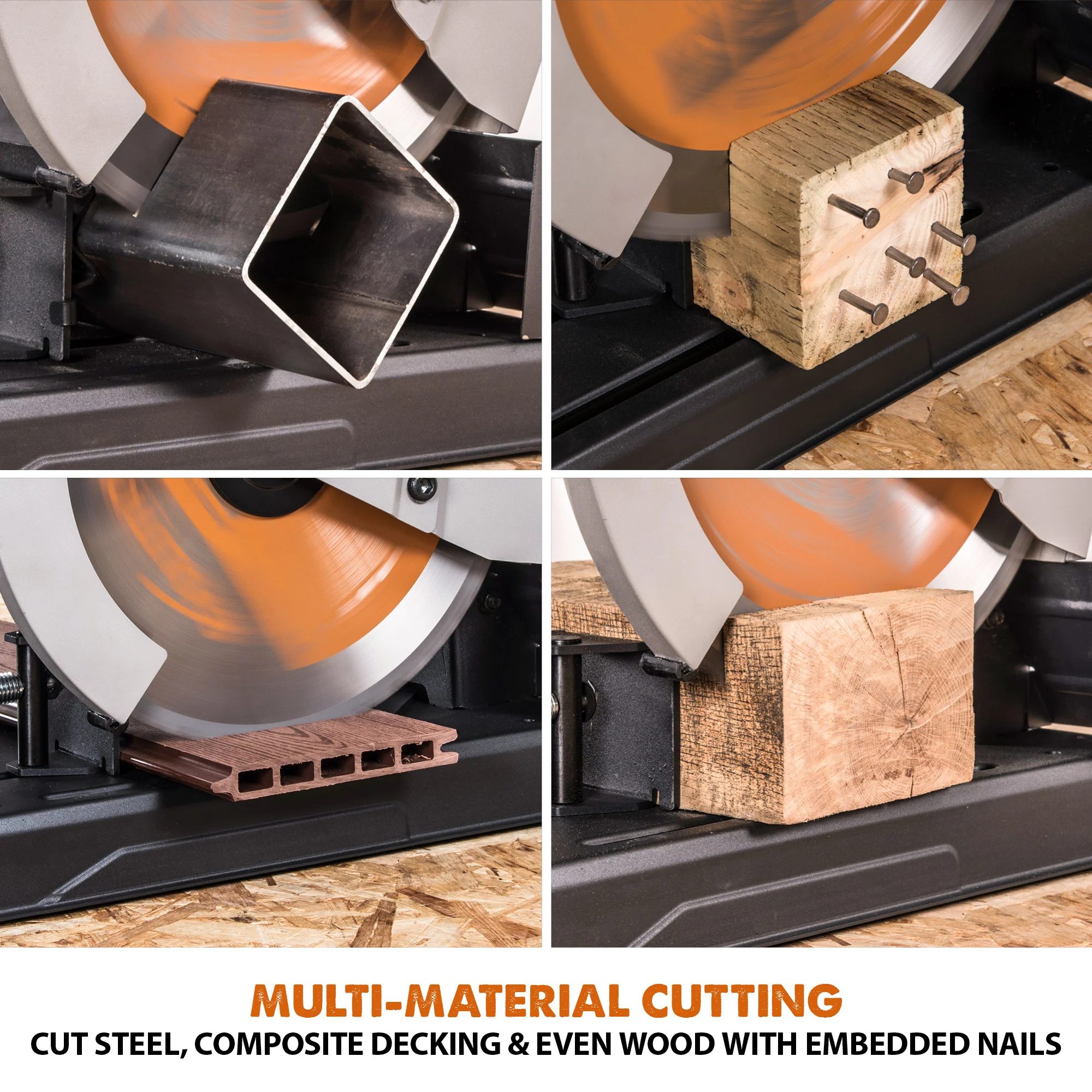

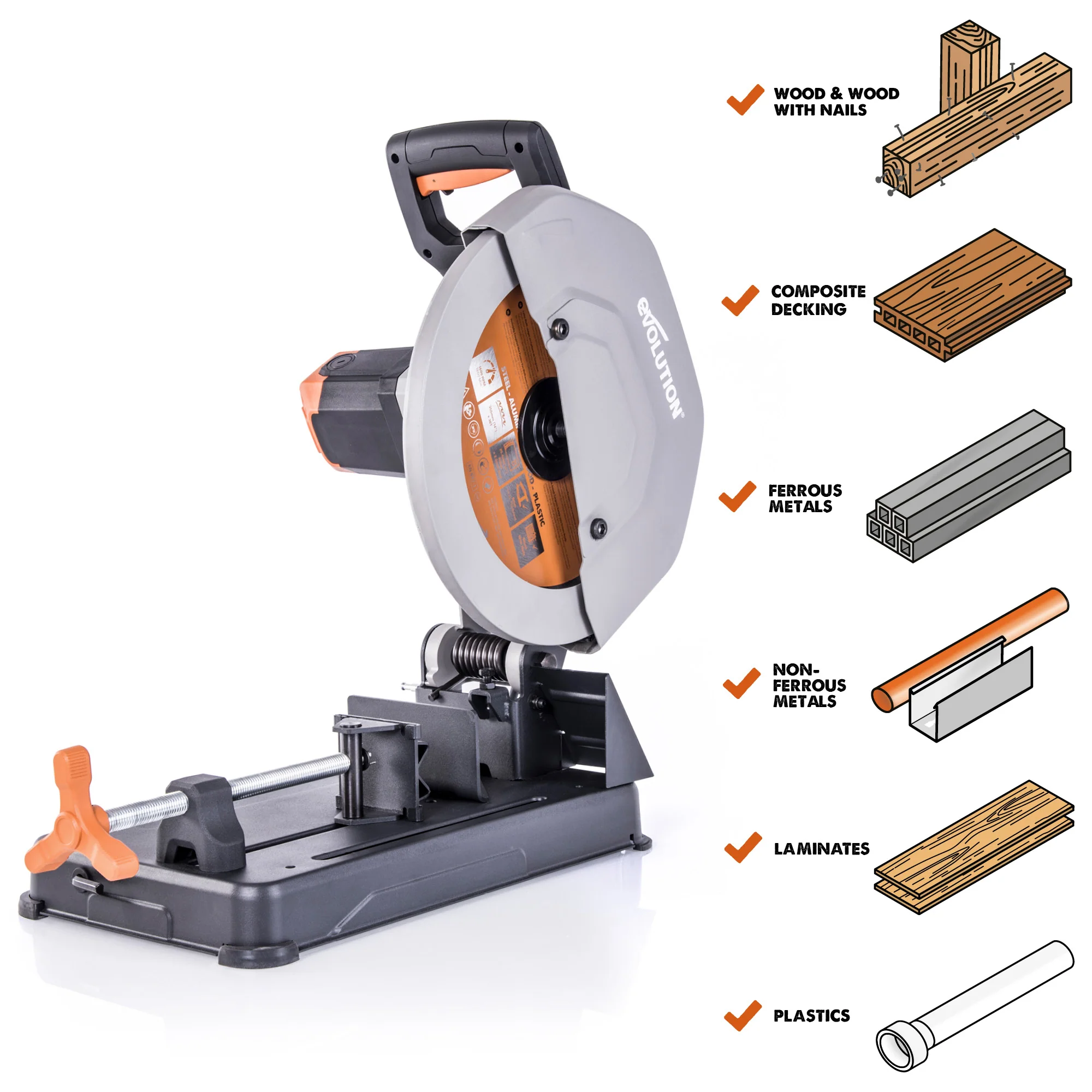

Cutting Applications
| Wood |
Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
|
Ferrous Metal
|
Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, RSJs, plate (1/4 inch), unistrut. |
|
Non-Ferrous Metal
|
Aluminum, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
|
Plastic
|
Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
|
Not Recommended
|
Hardened high carbon, coated and stainless steel.
Note: Cutting galvanised steel may reduce blade life. |
Specifications
Machine
| Motor (120V 60Hz): |
15A |
| Speed No Load: |
1450rpm |
| Max. Miter: |
45° |
|
Packaging Dimensions: |
18-1/2 x 22-5/8 x 14-3/4 Inch |
|
Product Dimensions: |
16-1/8 x 20-7/8 x 12-1/4 Inch |
|
Product Weight: |
47.4 lbs |
|
Packaged Weight: |
52.4 lbs
|
Blade
| Blade Dia.: |
14 in. |
| No. of Teeth: |
36 |
| Bore: |
1 in. |
| Kerf: |
.086 in |
Items Included
| 14” Multi-Material Cutting TCT Blade (Fitted) |
| Instruction Manual |

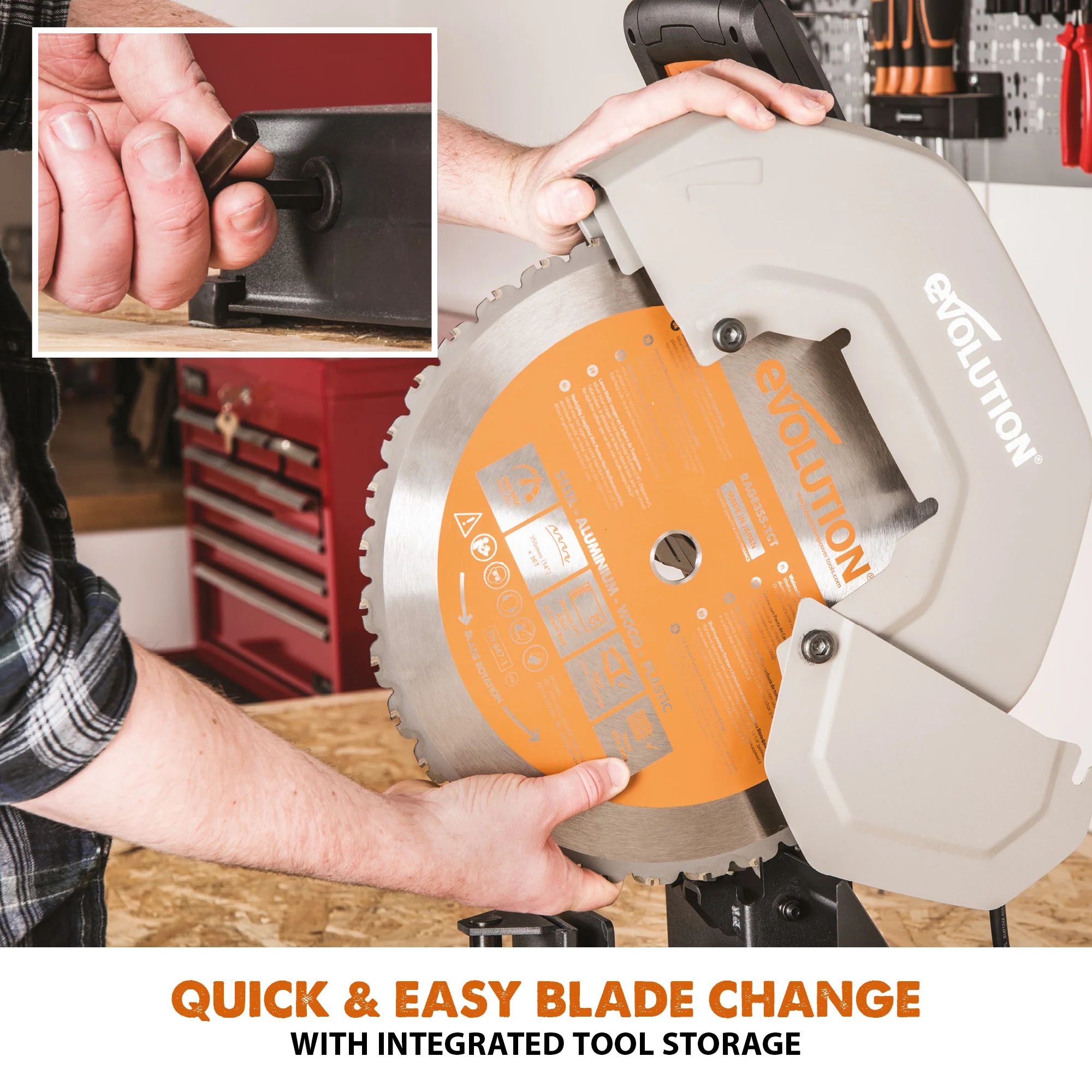

| 5/16" (8mm) (Blade Change) Allen Key |
| V-Block |
